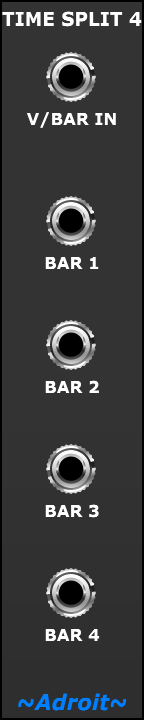

Time Splits 4 module

A Time Splitter that splits V/Bar time into 4 separate bars.

The image below shows the relationships between the various voltages as displayed by CV Watcher.

Voltages

The red trace shows the output from BAR 1 OF 4, the yellow trace BAR 2 OF 4, the green trace BAR 3 OF 4, the cyan trace BAR 4 OF 4 and finally the magenta trace shows the V/BAR IN voltage over a four bar period.

Contrast this image with the one for TIME SPLIT 2 to get a better idea of how time splitters work.

Availability

The Time Split 4 module is available in both LSSP XL and LSSP 101.
