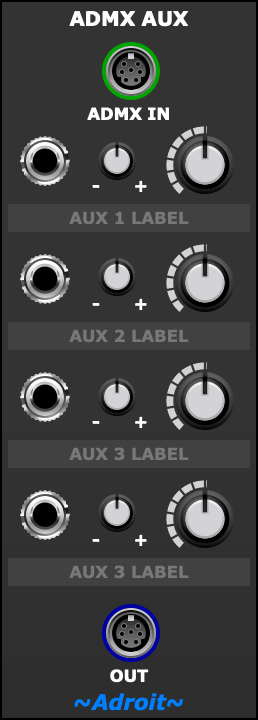

This module is part of the ADMX system.
It sets the Aux 1, Aux 2, Aux 3 and Aux 4 channels in an ADMX signal.
ADMX IN
If an ADMX signal is fed to the ADMX IN socket then the module passes on its Hue, Saturation, Brightness, Pan and Tilt information to OUT but replaces any Aux 1, Aux 2, Aux 3 and Aux 4 information with internally generated values.
If nothing is connected to the ADMX IN socket then the Hue, Saturation, Brightness, Pan and Tilt channels in the output are zero volts.
Therefore the ADMX Aux module may be placed at any point in an ADMX signal path.
Aux
There are four auxillary channels sections with identical features.
The large knob provides a base value. The small knob is an attenuvertor that controls the amount of modulation added to the base value when an external CV is fed to the socket on the left. When the attenuverter knob is at 12 o’clock there is no modulation, when set clockwise the modulation is positive, when set counter clockwise the modulation is inverted.
The outer dial of the large knob shows the result of adding external modulation to the base value.
