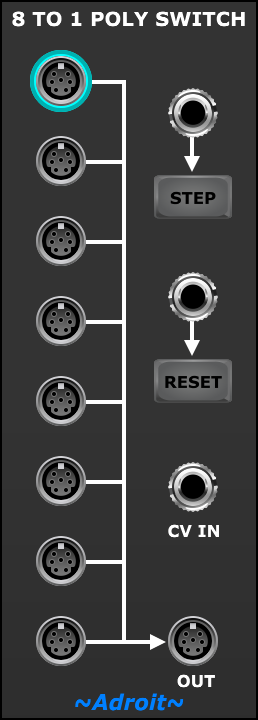

An 8 to 1 polyphonic switch module.
This routes one of eight polyphonic inputs to a single polyphonic output. Which input is selected can be controlled in a cyclical manner with a button press or a trigger input. A reset button and reset trigger input are also provided. Alternatively a 0 V to 5 V control voltage can be used to select which input to use.
The module checks how many cables are connected and ignores any input socket that is disconnected. Note this means that when just one input or no inputs are connected the module appears to be inactive.
If the CV IN socket is connected then the STEP and RESET functions are disabled. Voltage control is evenly distributed across the inputs, so for instance if two inputs are connected then the first input is selected by a CV of 0 V to just under 2.5 V and the second by 2.5 V to 5 V.
The switch works with with Adroit S-Poly signals as well as regular polyphonic ones.
Availability
The 8 to 1 Poly Switch is part of the Granular Synth, N-Step, Adroit Toolkit and ADMX bundles. It’s also available individually.
